Herbicide Injection into Rhizomes of Non-Native Phragmites (Phragmites australis) to Begin in Late Summer and Fall on Department of Transportation Right-of-Ways

We will start some trials later this summer and autumn in which we inject herbicide into the rhizomes of non-native phragmites. These trials will mostly be done on Minnesota Department of Transportation right-of-ways. We will use the Green Shoots Rhizome Injector protoype. This is the same tool we are currently trialing on Japanese knotweed. The rhizome of phragmites is hollow like the knotweed rhizome. It also consists of internodes and nodes. A septum separates each internode. Although the phragmites stem and rhizome are a little smaller in diameter the the knotweed stem and rhizome, injection seems to work pretty well. Here are some photos showing views of the rhizome and the proposed technique.

Phragmites stand in Minnesota Department of Transportation right-of-way.

Injection into phragmites rhizome through hollow stem.

Phragmites stem through which rhizome was injected.

Length-wise cross-section of phragmites rhizome. Note septum separating each internode.

Length-wise cross-section of phragmites rhizome showing how needle of injector could be inserted.

Follow-Up on Rhizome Injection for Knotweed – Evidence of Control from Winter Application of Herbicide

In our last couple posts you saw the rhizome injector system that we have been experimenting with.  We did applications throughout the winter and early spring. The injections were through the dead hollow stems. We cut the stems at ground level and inserted the needle down into the rhizome.  A few weeks ago, I noticed the shoot clumps were starting to send up aerial shoots.  I was concerned that the herbicide might not be having an effect. However, glyphosate is slow-acting, so I kept reminding myself to be patient.

We are finally starting to see results.  They are encouraging.  Here are photos of several of the treated stems.

Knotweed plants dying: two brown ones have collapsed and one in middle is showing effects of herbicide. Note hollow stem to which injection was done at bottom of photo.

Rhizome Injection to cut hollow stem in middle of photo. One dead stem and another showing herbicide injury.

Rhizome Injection on March 23, 2012. Brown dead plant showing effects of injection. Injection was through hollow stems that show some coloration from dye.

Healthy untreated knotweed stems nearby.

Rhizome Injector for Precision Treatments of Japanese Knotweed with Herbicide – Should Be Available for Sale this Summer

We have continued testing prototypes of our new rhizome injector.  This product will be used to treat invasive plants such as Japanese knotweed (Fallopia japonica) with herbicide. We

Injection into Rhizome through hollow stalk of dead aerial shoot

access the underground rhizomes (which remain alive year-round) through the hollow core of the dead aerial shoots. We inject glyhposate herbicide (Aquamaster, 54% active ingredient) into the rhizome through the hollow core. There are several potential advantages of this technique: by injecting into the heart of the rhizome, treatments should be more effective; the plant can be treated at many different times of the year; less herbicide may be necessary to achieve good results; problems associated with disposing of green aerial shoots (which can easily sprout when contacting soil) can be avoided; and fewer stems will need to be treated while maintaining effectiveness.

How can effectiveness be maintained while treating fewer stems?  Current techniques for killing knotweed require injection into each living green stem for the treatment to be effective.  With this new technique developed at Green Shoots, it is believed that by

Two treated stumps with winter bud

injecting the herbicide deep into the rhizome the herbicide will translocate further within the rhizome to multiple buds (from which stems gow) such as the reddish winter bud shown peeping up through the ground in the photo at left.  Each crown has multiple buds.  By injecting the herbicide into the rhizome, each of these buds should be killed and thus fewer injections should be necessary.

We will keep you posted on the results as the season progresses.

Killing a Big Buckthorn (rhamnus cathartica), a Highly Invasive Tree Using the Foam Herbicide Dispenser from Green Shoots

This video shows me taking down a large buckthorn tree.  I am using a chainsaw because this tree must be

Cutting Back A Big Buckthorn

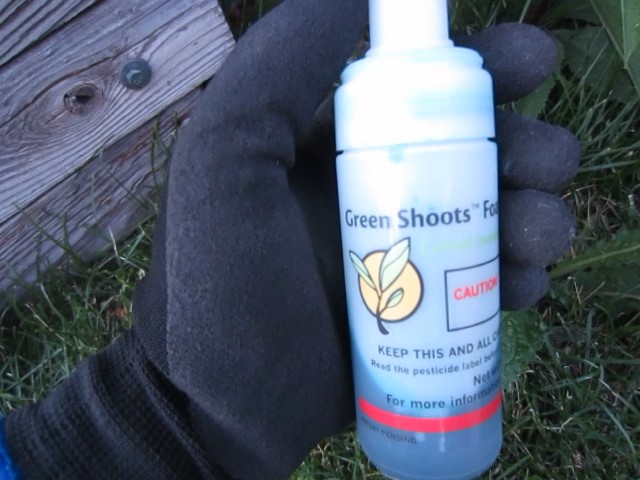

about ten inches in diameter and probably 80 to 100 years old.  After cutting off the tree and leaving a stump, I am applying foam herbicide using a dispenser being developed by Green Shoots.

Rhizome Injections of Herbicide for Japanese Knotweed – Testing New Injector Prototype

We are testing prototypes of a new rhizome injection system for use on plants such as Japanese knotweed (Fallopia japonica).

We have done preliminary tests with the rhizome injector.  A key aspect of the system is that aerial shoots do not have to be

FIG. 1 - Injection through hollow of dead Japanese knotweed shoot into rhizome

living in order to make an injection. (as this injection in winter shows!)  The injection is into the “green node” which is underground in the rhizome.

FIG. 2 - Cross-section of Japanese knotweed rhizome

 We have had encouraging preliminary results but need to have more rigorous testing especially with outside experts.  Potential advantages of the method include:

  1. injections could be made when the aerial shoots are dead – lessening worries about disposal of living plant parts;
  2. injections are directly into the rhizome – the part of the plant that needs to be killed for long-term success;
  3. amounts of herbicide used can potentially be less – We have thus far used approximately 2 ml per plant (Aquamaster (54% ai glyphosate diluted slightly with 0.15% colorant);
  4. injections could be made at times of the year that are less busy; and
  5. it may be possible (not confirmed) that fewer aerial shoots can be treated if injection is deep enough into the rhizome and herbicide then translocates to a greater number of shoots.

As of January 30, 2012, we are seeking six testers who have:

  1. treated Japanese knotweed before;
  2. used injection and foliar methods;
  3. access to test areas with mature Japanese knotweed stands;
  4. the ability to make at least 3 applications at different times of the year (including spring (before aerial shoots sprout), late summer, and late fall (after die-back of aerial shoots); and
  5. the ability to complete a short test summary with photos.

There will be no cost to the testers and testers can keep the prototype.  If you are interested in finding out more, please contact me at john at greenshootsonline dot com.
